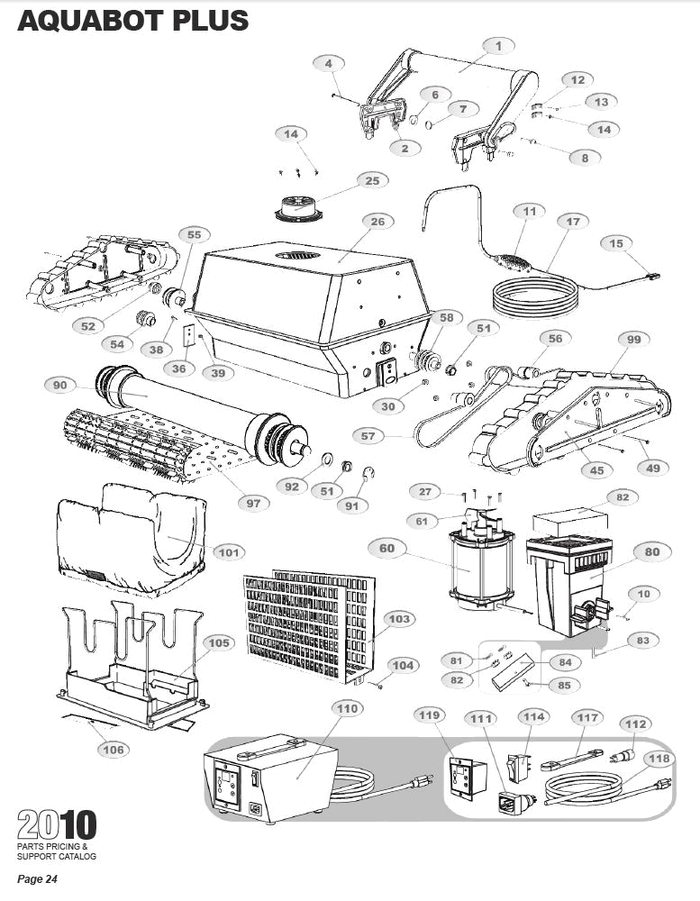

Aquabot Plus Parts
#
Model
Product Name
1
A10000B
Aquabot Plus Handle Assembly #A10000B
2
S1100B
Aquabot Plus Handle Bracket #S1100B
4
11003
Aquabot Plus Clevis Pin #11003
6
11004
Aquabot Plus Washer #11004
7
11005
Aquabot Plus Cotter Ring #11005
8
A1105PK
Aquabot Plus 7/8in Screw (5PK) #1105
10
2500
Aquabot Plus 1-1/4in. Screw #2500
11
SK2031BL
Aquabot Plus SK Cable Protector #SK2031BL
12
2102
Aquabot Plus 7/16in. Plastic Clip #2102
12
2100
Aquabot Plus .25in. Plastic Clip #2100
13
2700
Aquabot Plus 11/16in. Screw #2700
14
2260
Aquabot Plus 7/16in. Screw (2PK) #2260
15
1601
Aquabot Plus 3 Pin Female Plug #1601
17
S1675CP
Aquabot Plus Cable Assembly #S1675CP
25
2230B1
Aquabot Plus Outlet Top #2230B
26
A22000
Aquabot Plus Body Assembly #A22000
27
2251
Aquabot Plus 8-18 x 3/4 Screw #2251
30
3402
Aquabot Plus Nut #3402
36
9204N
Aquabot Plus Lock Tab #9204BL
39
7133
Aquabot Plus Lock Nut (2PK) #7133
38
2303
Aquabot Plus Phil Bev Head Screw (2PK) #2303
45
S3400B4H
Aquabot Plus Sideplate #S3400B4H
49
3401
Aquabot Plus Screw #3401
51
A2600PK
Aquabot Plus Bushing for Pulley Assembly (2PK) #2600
52
2610
Aquabot Plus Bushing for Pin on Body Assembly #2610
54
3500
Aquabot Plus Small Roller (2PK) #3500
55
3700
Aquabot Plus Large Roller #3700
56
A3506PK
Aquabot Plus Stepped Sleeve Roller (2PK) #3506
57
A3302PK
Aquabot Plus Drive Belt (2PK) #3302
58
A3600
Aquabot Plus Pulley Assembly #A3600
60
S1A6002
Aquabot Plus Pump Motor #A6001T
61
4400
Aquabot Plus Propeller #4400
80
A4510T
Aquabot Plus Drive Motor #A4510T
81a
4619
Aquabot Plus Loop Connector #4619
81b
4618
Aquabot Plus Brass Nuts #4618
82
3101
Aquabot Plus Float #3101
83
4613
Aquabot Plus Spiral Pin #4613
n/a
800001
Aquabot Plus Putty #800001
84
5000
Aquabot Plus Terminal Cover #5000
85
4501
Aquabot Plus 8-18 x 1/2 Screw #4501
90
A38205MG
Aquabot Plus Wheel Tube Assembly #A38205MG
91
11058
Aquabot Plus Retaining Ring #11058
92
A3603PK
Aquabot Plus Washer (4PK) #3603
97
A2900
Aquabot Plus Foam Brush #A2900
97
3009
Aquabot Plus PVA Brush #3009
97
A3002BPK
Aquabot Plus Rubber Molded Brush (2PK) #3002B
99
A3201PK
Aquabot Plus Drive Track (2PK) #3201
101
8111
Aquabot Plus Small Filter Bag #8111
101
A8112PK
Aquabot Plus Small Mesh Filter Bag #8112
103
5300
Aquabot Plus Filter Screen #5300
104
2702
Aquabot Plus 11/16in. Screw #2702
105
A9300XA
Aquabot Plus Bottom Lid Assembly #A9200X
106
SPK-27
Aquabot Plus Bottom Lid Parts Kit #9305BB
n/a
S3103
Aquabot Plus H Float #S3103
n/a
3104
Aquabot Plus Sidepocket Float #3104
110
7073C
Aquabot Plus Power Supply #7073C
111
7108
Aquabot Plus Socket Assembly #7108
112
7206
Aquabot Plus Fuse Holder #7206
n/a
7207
Aquabot Plus Fuse Holder #7207
114
7208
Aquabot Plus Non Lighted Switch #7208
117
7041A
Aquabot Plus Handle #7041A
118
7102
Aquabot Plus Cord for Power Supply #7102
119
7074D
Aquabot Plus Digital Timer #7074D
