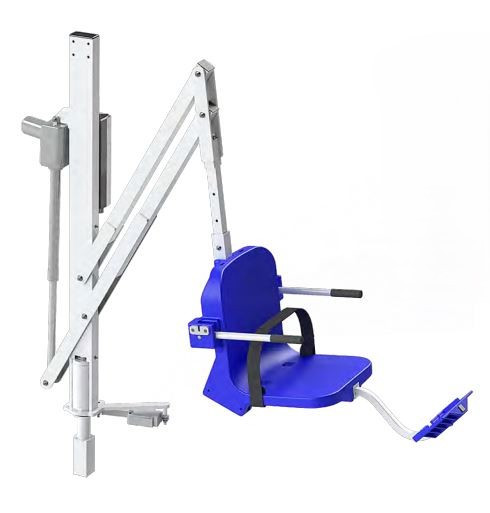

Pentair AquaTRAM 90+ 11421-A Aquatic Lift with Round Post without Anchor

Pentair 400Lb Round Post AquaTRAM 90+ Aquatic Lift without Anchor

AquaTRAM pool access lifts provide, safe, easy swimming pool access for swimmers with physical disabilities. With three versions to choose from, there is an AquaTRAM that fits every pool and budget. Standard features include simple to operate controls, rechargeable battery-powered operation and lifting capacities of up to 500 pounds.

FEATURES AND BENEFITS

1. Unique, versatile and cost-effective design accommodates most pools with a deck-to-water (d-w) dimension up to 14".

2. ADA Compliant; Lifting Capacity: 400 lbs.

3. Reversible design rotates 90°. The same model number can be installed “Right-Facing” or “Left-Facing” by rotating the lift 90° in its anchor.

4. Superior Reach and Versatile Anchor Placement: A. Can clear an 18" Built-In (Spa) Bench when installed with an 18" anchor set-back* (at 6" d-w). B. Can accommodate anchor set-back* of 16"-36" for “Square” Pool Profiles (with max. d-w). C. Can accommodate up to 36" anchor set-back* for typical “Roll-Out” Gutter Profile (based on 6" d-w dimension). D. Consult with the factory for assistance with your application.

5. Quickset model (11420) has a 21/2” square port penetration for use with Paragon Dual-Wedge, tool-less, clamping anchor which, also retrofits into existing 21/2” sq. x 6” deep anchors.

6. Round post model (11421) has a 1.90" OD Round post X 6" deep penetration. The lift may be purchased with anchor or can retrofit into many existing anchor systems**.

7. Lightweight; easy to move and store when not in use. Optional cart is available.

8. Dual flip-up armrests provide easier access and safer transfers on the pool deck and in the water.

9. The comfortable seat has an adjustable lap belt with hook-and-loop fasteners, plus an adjustable and removable footrest.

10. Simple 4-button submersible handset lets the user raise, lower, and rotate while seated or from the pool edge.

11. Stainless steel construction with corrosion-resistant epoxy powder-coat finish.

12. Rechargeable battery-powered operation is easier to install than water-powered lifts; provides a smoother ride, greater reliability and easier servicing with plug-and-play components.
